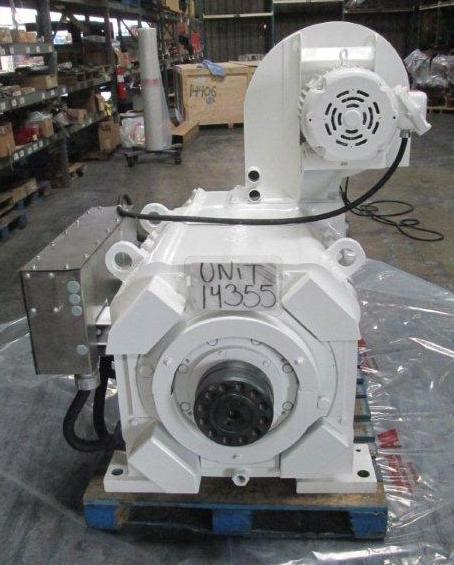

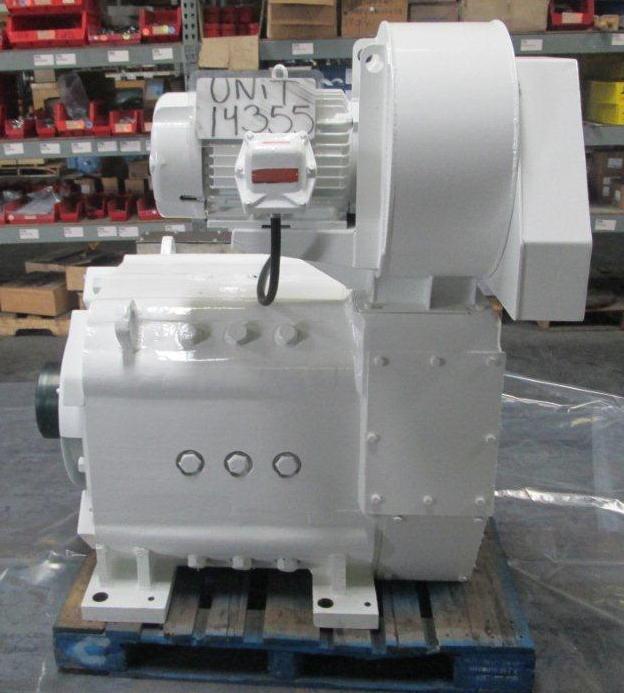

GE752 Series Wound DC Traction Motor – Remanufactured

Continuous rating: 750 VDC, 1050 amps, 975 rpm, 5284 ft. lbs., 1000 hp

New frame
Series wound
Single shaft extension
Terminal strip
New XP lockout device
New Drilling hub
New 535 mcm 2 KV, DLO leads
New continuous commutator Teflon creepage band
Spiral grooved commutator
New heaters, 240 volt, 500 watt
New Carbon Steel heavy duty 10 HP, 3600 Rpm,460 Volt Blower
New stainless steel heavy duty pressurized Junction box with bolt on connections, (1)”A” and (1) “B” type to be located on the left-hand side facing commutator end.

We can also offer Remanufactured GE761 DC Drilling motor, Rated as 600 HP, 2,626 ft.lbs, 640 Amps, 750 VDC, 1200 RPM
