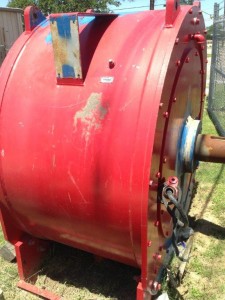

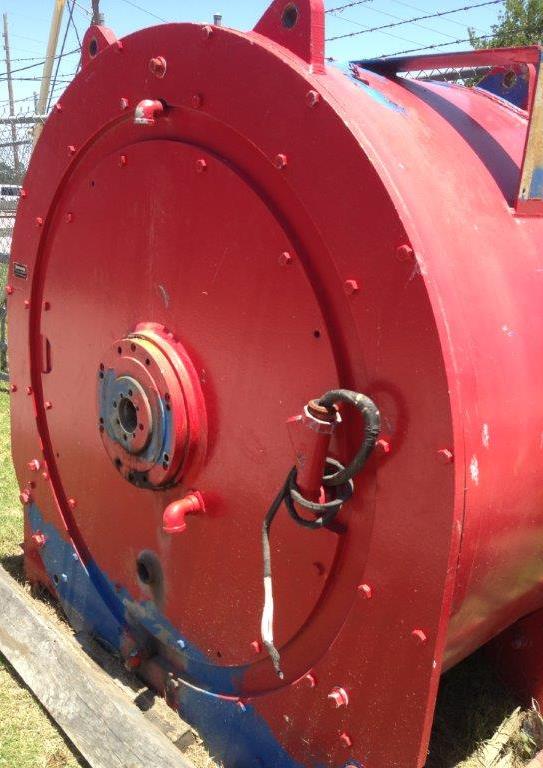

7040 Baylor Elmagco Eddy Current NOV Brake – Used

By admin 12 years ago

Model: 7040W
Rated Torque: 84,000 ft-lbs @ 50 rpm
Number of Magnets: 2
Number of Coils: 4
Voltage: 250 VDC
Current: 77.88 amps
Inlet water flow: 140 GPM
Housing assembly weight: 24,000 lbs.
Housing assembly width: 40″
Housing assembly height: 70″
Rotor Weight: 4,920 lbs
Assembly Number: R/B54238
