OFFSHORE JACK-UP (ABS 2019) CERTIFIED RIG – REFURB FINISHED 2018

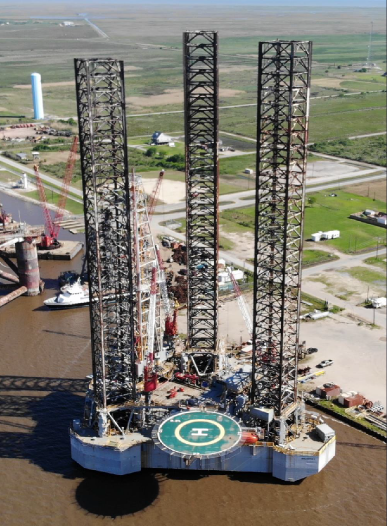

OFFSHORE JACK-UP FOR SALE (ABS 2019) CERTIFIED RIG – REFURB FINISHED 2018 (Located in Texas)

FLAG: Liberian
NAME: ENSCO 69
YEAR BUILT: 1976
DESIGN: Marathon LeTourneau Class 84 Jack up

BUILDER:Marathon LeTourneau, Shipyard Vicksburg, Mississippi, USA
UPGRADE: 2018 (Overhaul)

STATUS: Active, ABS Class Certification
CLASS NUMBER: 7609673
IMO NUMBER: 8753639
ABS CLASS NOTATIONS: A1, Mobile Offshore Drilling Unit (MODU)

LAST INSPECTION (ABS): January 2019

MAIN DIMENSIONS
– LENGTH:247ft-7in;BREADTH:227ft-5in;DEPTH:26ft
– LEGS: 3 x 410 ft Square Truss (add. 101 ft available, 511 ft total)
– LEGSPACING: Longitudinallegcenters129ft; transverselegcenters142ft.
– SPUDCANS:46ftdiameterx24fthigh
– CANTILEVER:Slotdimensions41ftx50ft
– HELIDECK:S-61; diameter70ft

OPERATIONAL PARAMETERS
– WATERDEPTH:300ft(17ft-300ft); 400ftwithadd.leginstalled
– MAXIMUNDRILLINGDEPTH:20.000ftwith5inDP
– AVAILABLELENGTHBELOWHULLINCLUDING5FTMARGINAIRGAP:80ft
– RANSITSPEED:5knots
– SURVIVALCONDITIONS–CRITERIADESIGN;wind:100Knots; wavesperiod:13sec; waveheight:44ft.
– JACKINGANDSKIDDINGSYSTEM:
MarathonLeTourneauACelectricrackandpinion,90ft/HR

DRILLING EQUIPMENT
– DERRICK: Dreco 170 ft x 30 ft x 30 ft x 1.500.000 lbs.
– CANTILEVER LOAD: 1.310.000 lbs.
– DRAWWORKS: 1320 x UE 2000HP National Oilwell; wire 1 1⁄2”.Electric brake: model 7838 Baylor
– ROTARY TABLE: model C-375 National Oilwell 37 1⁄2″, driven by 1 D79 EMD motor
– TOP DRIVE: model TDS-4H Varco BJ 650 TON, with Pipe Handler model PH-85
– TRAVELLING: Continental Emsco 760H 650 TON
– CROWN BLOCK: National OilWell 760FA
– MUD PUMPS: 2 National Oilwell model 12-P-160 Triplex – 5000 psi. Stand pipe 5 in x 5000 psi

– MAIN POWER: 3 EMD 16-645-E8 Engines 6600 HP, generators AB20-N6 x 1,575 kW 600 V
– EMERGENCY POWER: 1 Cat 3412-TA 719 HP Diesel engine

– HYDRAULIC CATWALK: model C14, North Rig
– CEMENTING UNIT: 2 electric triplex pumps. 15000 psi, 14 BPM
– DRILL PIPE: DP 5 in 4 1⁄2” IF (NC50), S 135 (new)
– DRILL COLLARS: 6-1/2” (4 1⁄2” IF ) ; 8 in (6 5/8” REG) and 9 in (7 5/8” REG)
– WELL CONTROL SYSTEM: BOP 1 x Shaffer x 13-5/8″ x 5,000 psi annular; 1 x Cameron 13- 5/8” x 10,000 psi double ram; 1 x Cameron 13-5/8″ x 10,000 psi single ram
– CONTROL SYSTEM: air/electric powere
– DIVERTER: Shaffer MSP x 2000 psi x 21-1/4″
– CHOKE AND KILL MANIFOLD: 3-1/16″ x 10000 psi x 2 HCR & 2 manual

CAPACITIES:
– LIQUID MUD: 1605 bbls
– BULK MUD / CEMENT:6240 cu.ft
– SACKS: 2500 sacks
– DRILL WATER: 10540 bbls
– POTABLE WATER: 1294 bbls
– FUEL OIL: 4727 bbls
– BASE OIL: 563 bbls
– PRELOAD TANKS (INCLUDE COMBINATION TANKS): 15542 kips
– MUD EQUIPMENT: Mud cleaner (4) MI Swaco; Desilter (1) Mi Swaco; Degaser, Rig Vaccum MI Swaco.

VESSEL ACCOMMODATIONS
– 88 berths; main offices, auxiliary offices; mess and galley, meeting room; recreation room and gym, medical office with observation room and bedroom with eight beds for quarantine cases
– WATERMAKER:model NH75463+APC, FCI
-SEWAGE TREATMENT: model RF 4000-M; Red Fox

SECURITY SYSTEMS
– Communication and Navigation System GMDSS
– Smoke and Heat detection System
– CO2 Extinguishing System; Water Extinguishing System with Raw Water System.; Portable extinguishing equipment
– Toxic Gas (H2S) and Combustible Gas (CH4) Detection System
– General Alarm System
– Emergency Shutdown System
– CCTV System
– One Lifeboat (63 Man Cap.), two survival capsules (28 Man Cap. each), four Liferafts (25 Man Cap. each)

CRANES
– Model PC-120AS Marathon Letorneau; Boom: 2 @ 120’ Max. load 90000 lbs
– Model PC-120AS Marathon Letorneau; Boom: 1 @ 100’ Max. load 90000 lbs
